Turbulent Plane Channel Flow: Velocity Perturbations

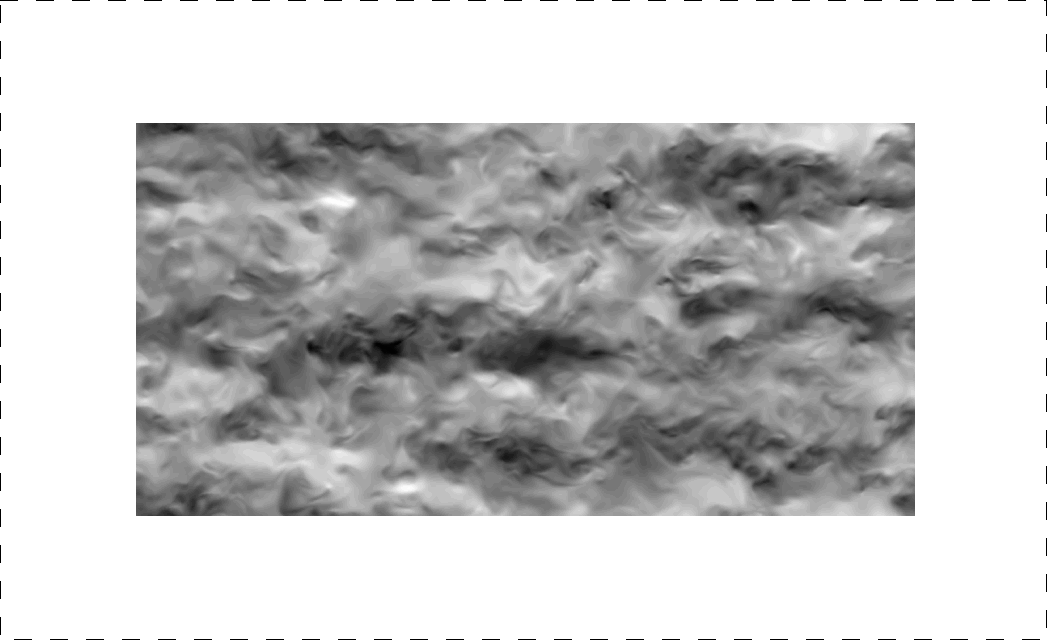

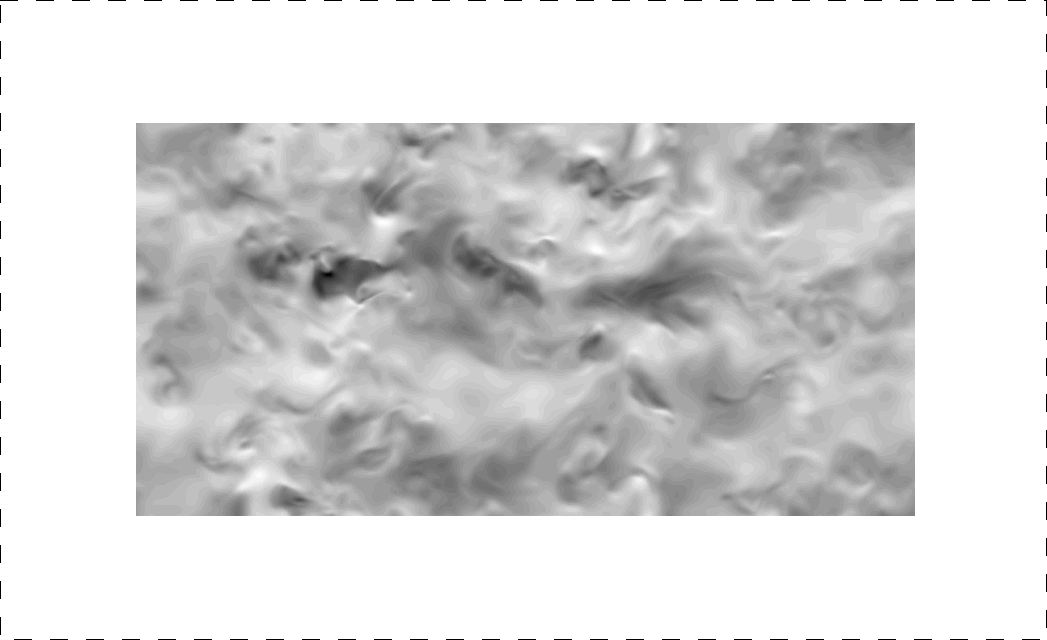

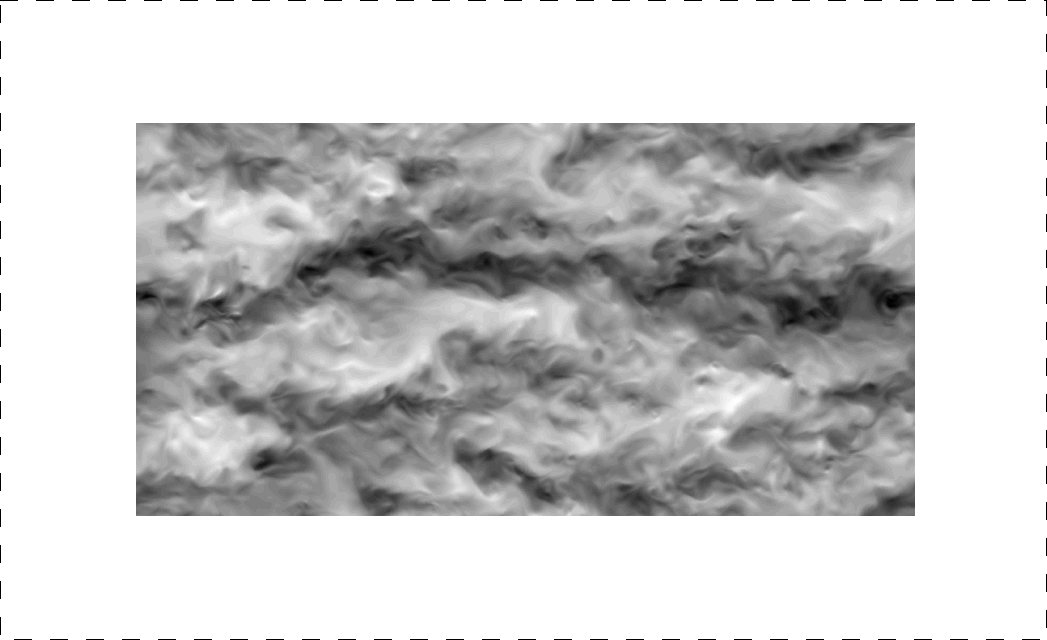

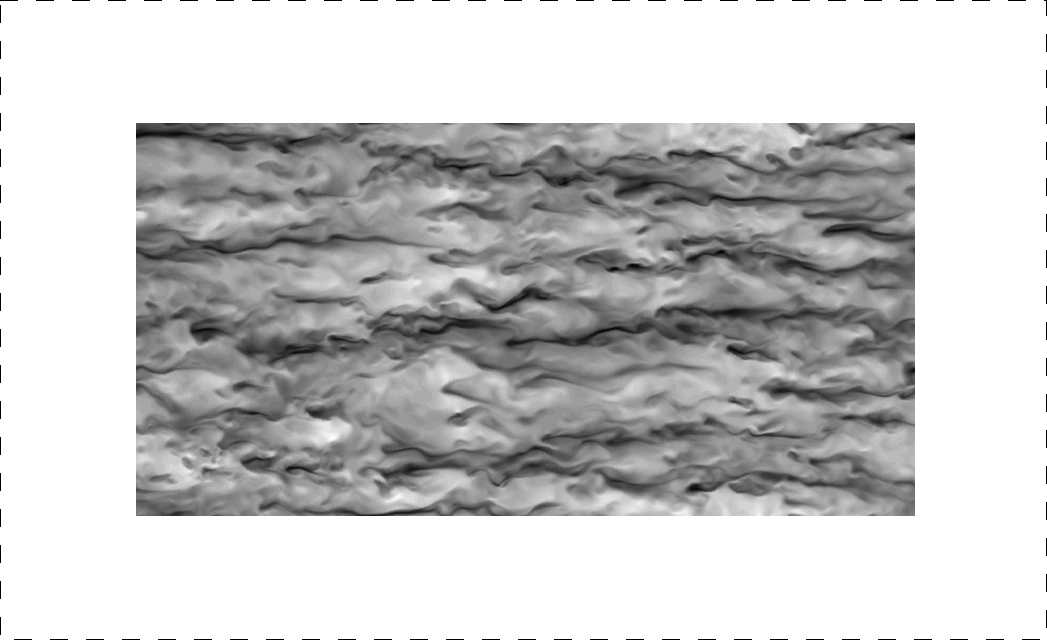

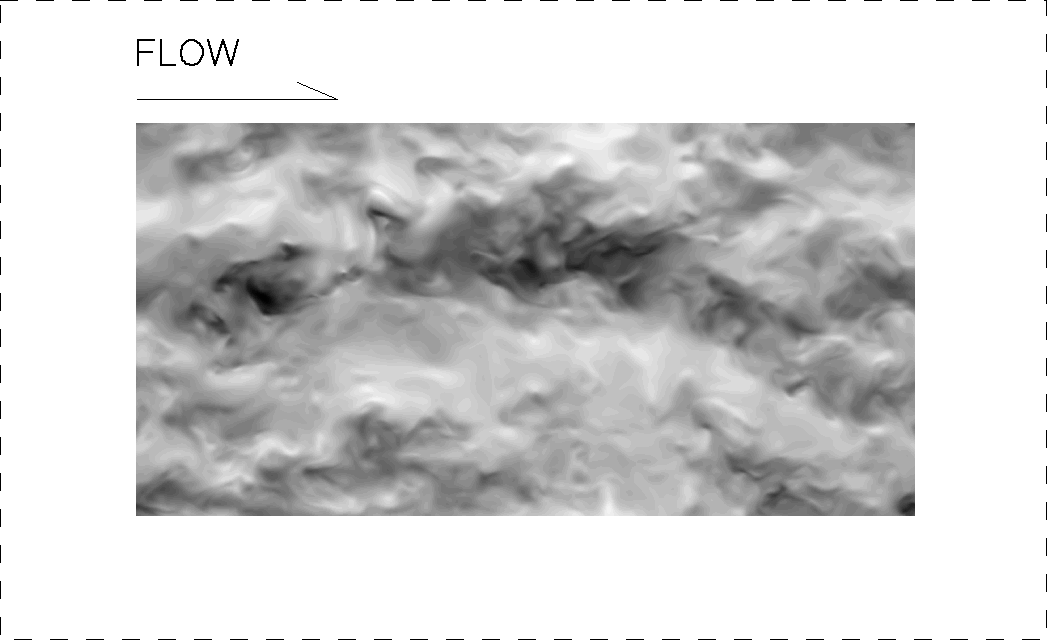

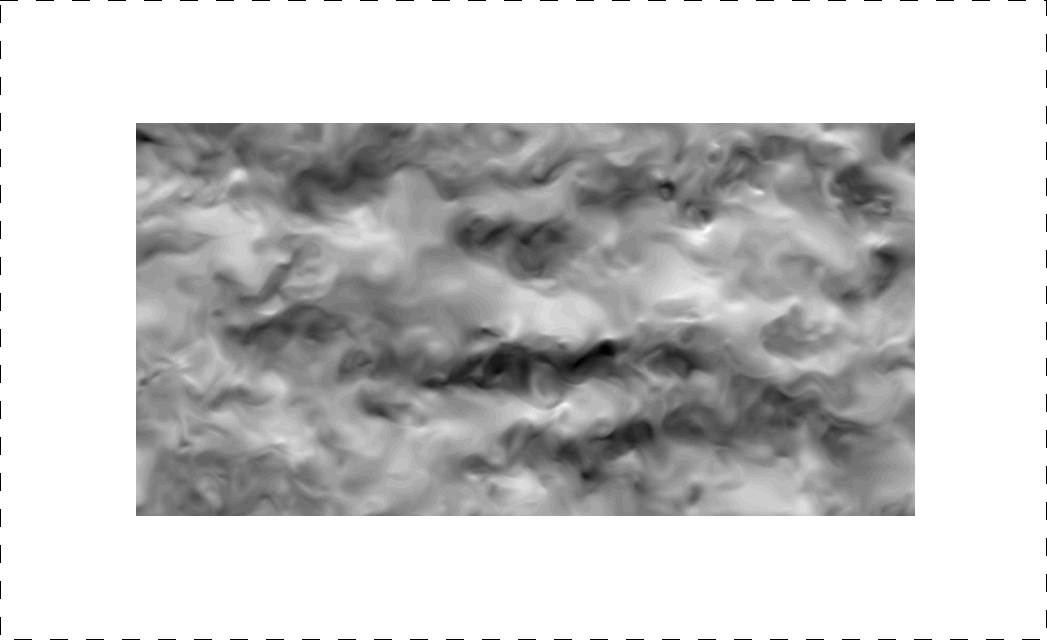

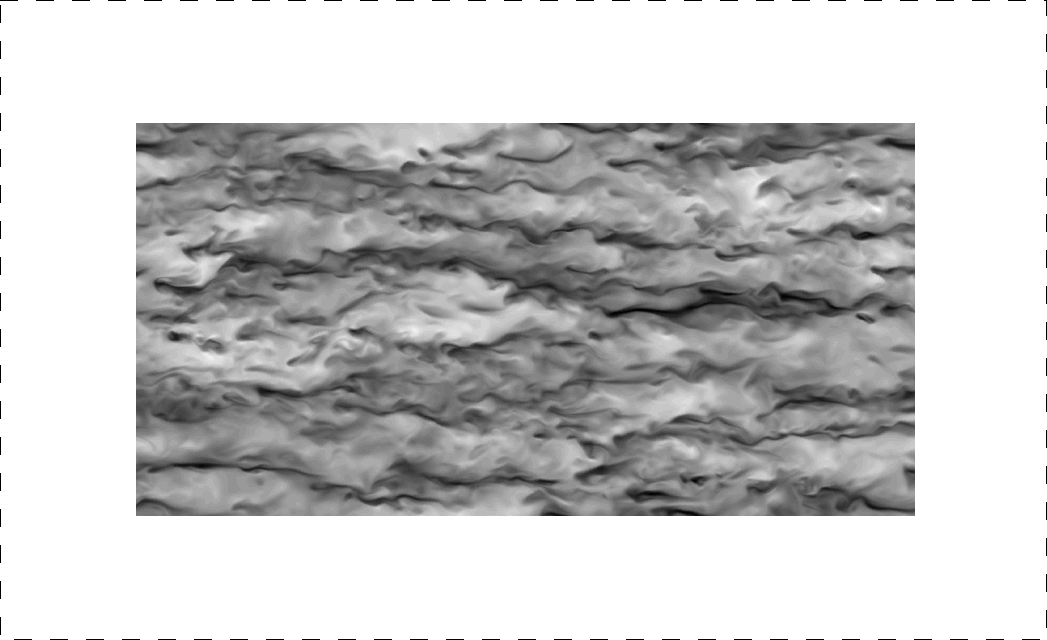

The figures below show velocity perturbtion isocontours in
streamwise-spanwise planes of a plane channel. The friction Reynolds
number is 590; the images show one period of one snapshot of the
fully-spectral computation of the flow-field, i.e. 3700x1850 wall
units. The numerical resolution - as well as the data used in the
image - is 6x3 wall units. Dark shading indicates low velocity. The
colormap varies from image to image.
y+= 45
y+=170
y+=364
y+=590 (center-plane)
